As building automation projects become increasingly complex, system integrators need solutions that are easier to engineer, faster to commission, and more scalable over time.

This Product Release addresses these challenges by introducing two new controller lines: UAC28-IP for HVAC and plant applications, and ZAC24-IP-D for integrated zone automation. Combined with the new Touch Point 2.0 room panels and the latest capabilities of nano EDGE ENGINE and nanoWebUI™, the platform delivers a unified ecosystem for controlling comfort, lighting, blinds, and building processes from edge to cloud.

In this article, we take a closer look at the new products and features shaping the next generation of building automation.

01.

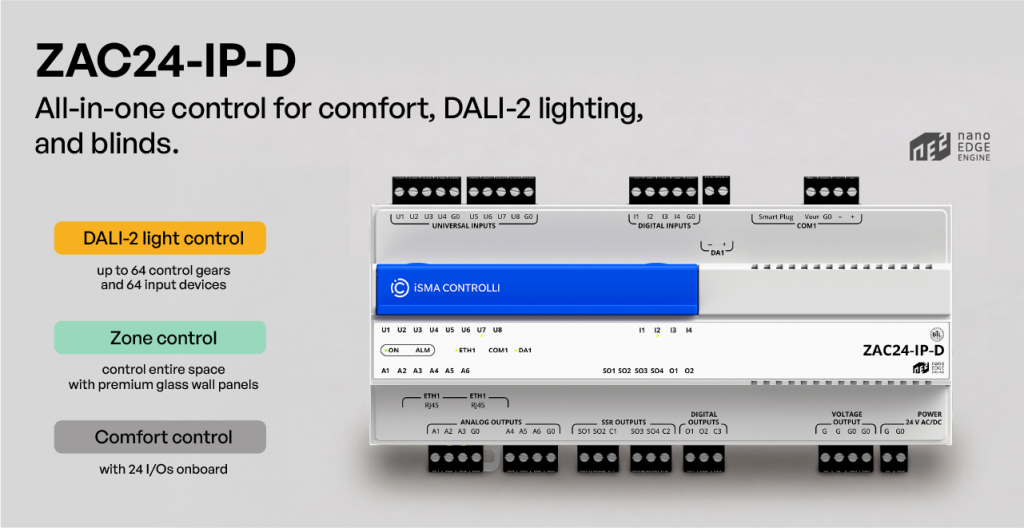

Integrated zone automation made simple!

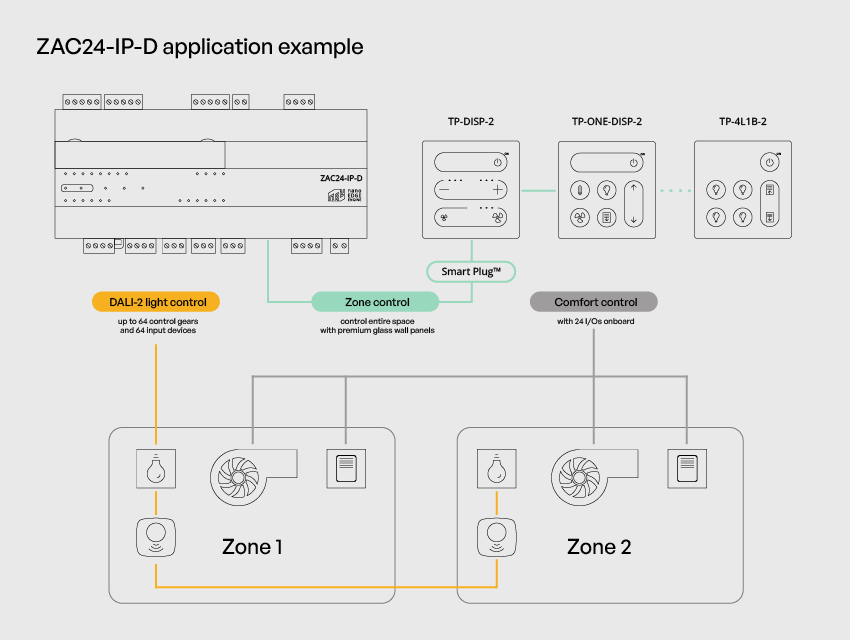

Managing HVAC, DALI-2 lighting, and blinds in modern buildings no longer needs to mean multiple systems, separate interfaces, and complex integrations. ZAC24-IP-D brings HVAC comfort control, DALI-2 lighting, and blinds management together in one powerful zone controller. Equipped with 24 onboard I/Os, it is designed to independently manage two building zones, helping reduce complexity and installation costs while giving users more control over comfort, lighting, and the room environment.

02.
Key features:

  • ZAC24-IP-D, equipped with a set of 24 I/Os, perfectly matched to simultaneously control comfort, lights, and blinds in two independent zones.
  • Niagara-enabled with nano EDGE ENGINE embedded, supports real-time programming, native BACnet support confirmed with BTL certification.
  • Features on-board DALI-2 interface with integrated commissioning software for DALI lightning systems using free of charge iC Tool and Niagara Workbench
  • Simplified DALI-2 device management with discovery and automatic addressing functions.
  • Intuitive GUI for easy management of up to 16 Groups and 16 Scenes.
  • Flexible user control with the dedicated line of Touch Point 2.0 Wall Panels.
  • nanoWebUI™ – a scalable, modern web interface that builds itself during controller engineering

03.
DALI-2 commissioning within Niagara Workbench or iC Tool.

No matter which tool you select, iC Tool or Niagara Workbench with nE2 Link extension, you can fully commission and address your DALI-2 system, manage groups and scenes, and adjust brightness levels or colors for RGBW fixtures. Dedicated views allow you to configure lighting parameters, integrate them with your application logic, and easily identify individual lamps.

    04.
    Perfect match!
    Pair ZAC24-IP-D with TP-ONE and control the entire zone from a single point.

    The single panel that combines comfort control with multiple lighting and blind control options. With just ONE panel, users can manage all automation functions within a room, creating a comprehensive and intuitive control hub for modern smart rooms.

    This solution significantly simplifies cabling, reduces installation time and labor costs, and enhances the overall character of the room.

    01.

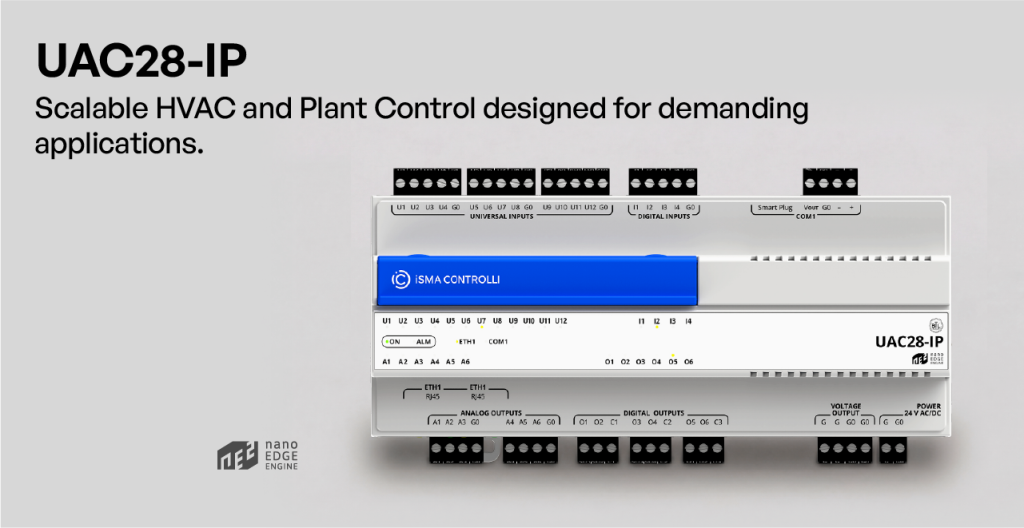

    Streamline your HVAC control with UAC28-IP.

    The new LTE-DIN-EXT-SET enables LTE connectivity for a seamless remote access to the MAC36PRO controller. This ready-to-go set includes an LTE USB modem, 1 m USB cable for convenient connection, LTE magnetic antenna for signal transmission, and accessories required for DIN rail mounting, which makes it virtually a plug-and-play solution for MAC36PRO controllers.

    The LTE connection is easily configurable in the controller’s Device Management Web Server and provides a remote access to the MAC36PRO controller with cellular communication.

    02.
    Key features:

    • Versatile real-time programming, management, and commissioning via Niagara Workbench or the free of charge iC Tool.
    • Open protocol interoperability including BACnet, Modbus, and Haystack 4 with Auto-exposure functionality for seamless integration with BMS and IoT platforms.
    • Scalable architecture: start with powerful onboard I/Os and expand the system with Multiprotocol I/O Modules whenever the application grows.
    • nanoWebUITM – a scalable, modern web interface that builds itself during controller engineering.

    03.
    Application examples.

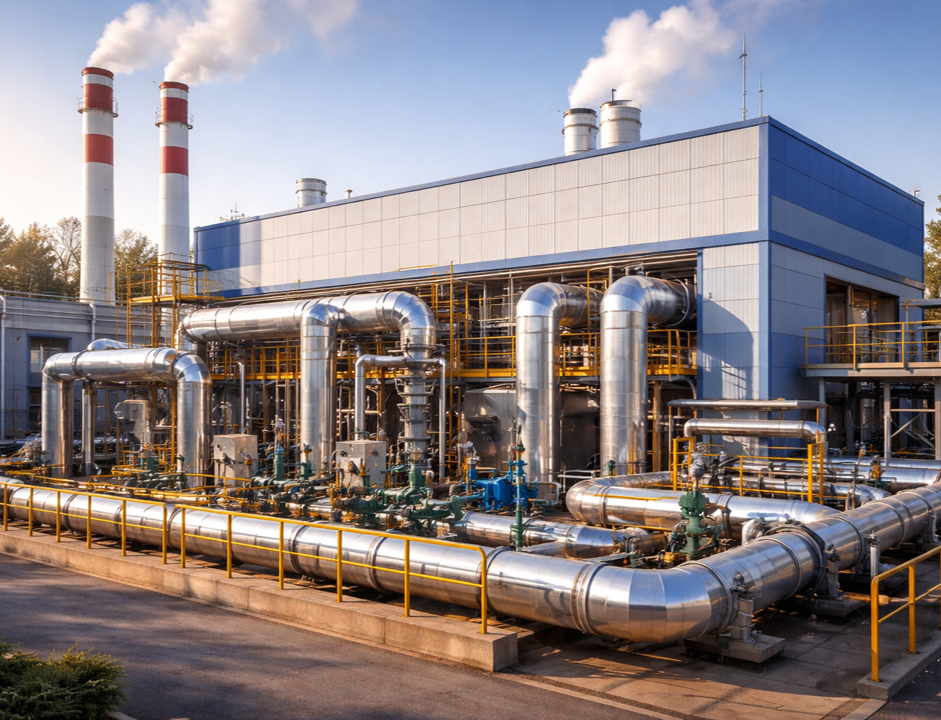

    Heating Station

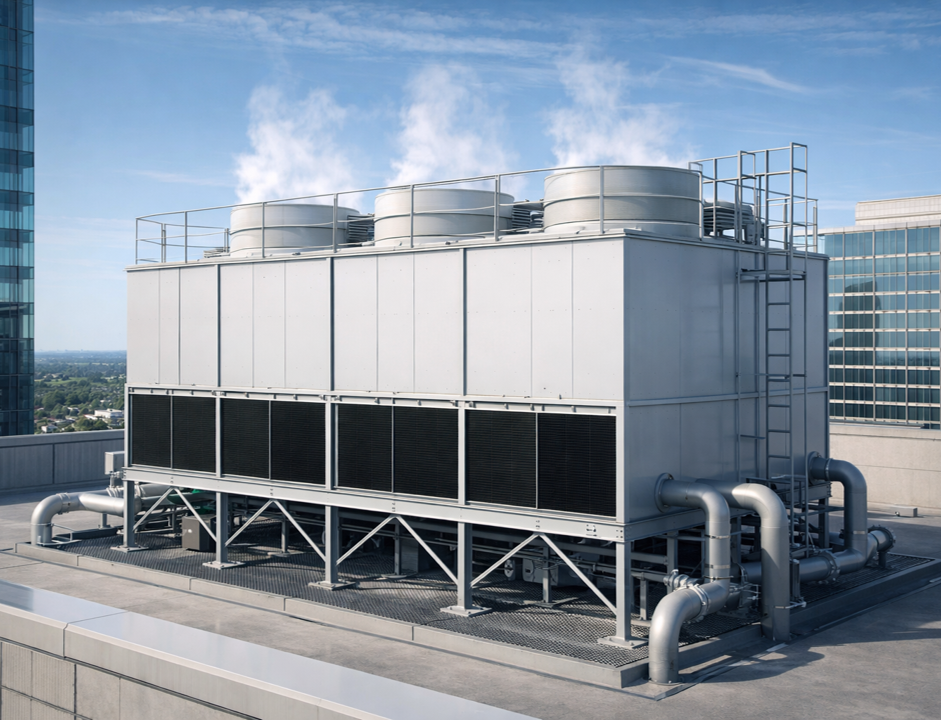

    Cooling Station

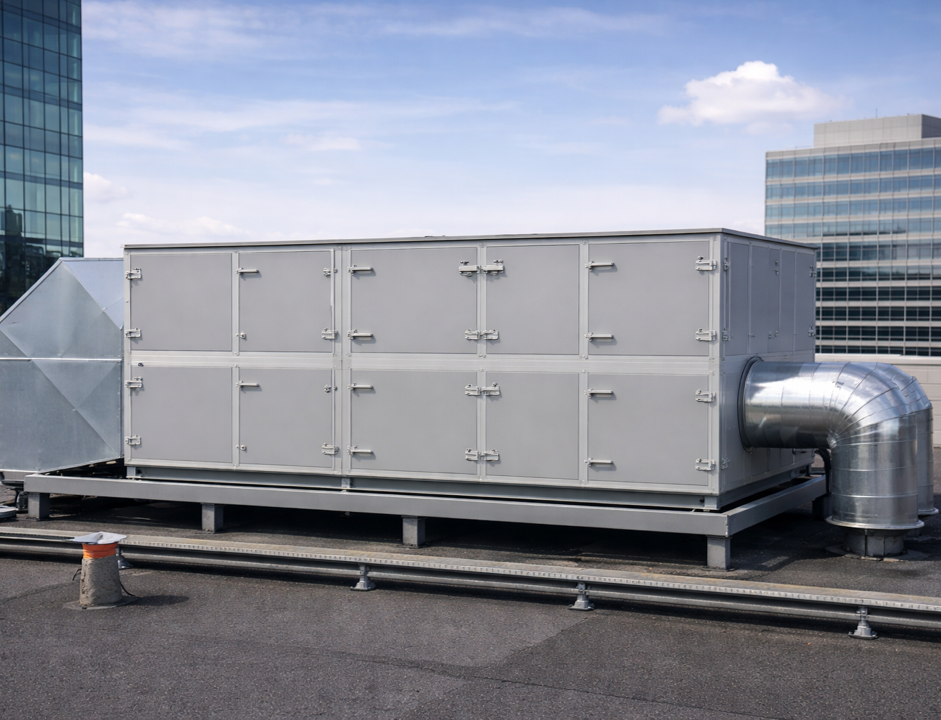

    AHU

    We are pleased to announce that nEE OS version 1.10 is now the default operating system for all Niagara-enabled controllers: RAC18-IP, VAV14-IP, ZAC24-IP-D, and UAC28-IP.

    The platform is built on a proprietary component-based architecture that enables real-time data normalization across multiple systems. This mechanism is protected by U.S. Patent No. 12,547,132 B2, reflecting a fundamentally different approach to system integration.

    New features with nEE OS 1.10:

    • Complete DALI-2 Management and Commissioning with nE2 Link and iC Tool.
    • Light Control Library for simplified programming of lighting strategies.
    • Configuration Data Service for constant components – save, restore, and export of the default values of constant components.
    • nE2 Link – Multi Device Management: Backup and Restore.

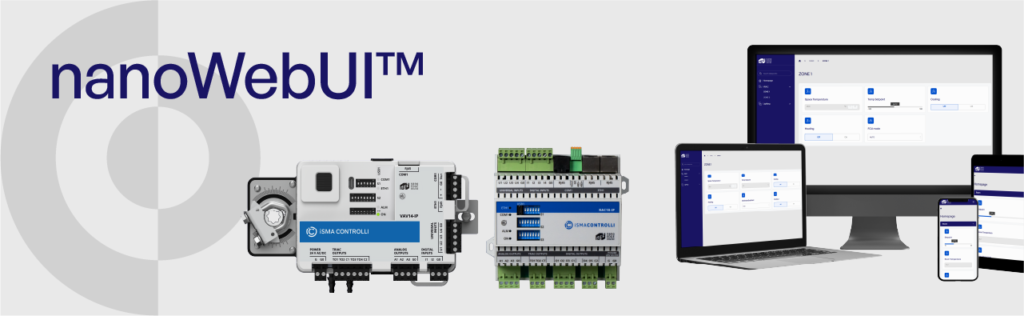

    Manage your HVAC system from any browser with a modern UI.

    The nano EDGE ENGINE now offers a modern HTML5 web user interface, enabling live data visualization and seamless web-based interaction. Access dashboards directly from your PC, tablet, or phone, providing an intuitive, responsive, and highly accessible way to monitor and manage systems based on our Niagara-enabled controllers.

    Key features:

    • Responsive UI accessible via HMI panel or web browser (PC & mobile).
    • Automatically generated dashboards during controller programming.
    • Real-time controller data monitoring and management, structured with applications and equipments.
    • Future-proofed with auto-tagging and Haystack HTTP API, enabling edge-to-cloud integration.
    • Different widget types for clear, efficient, and customizable dashboarding.
    • Tagging service – provides centralized management of tags for Data Points and Equipments.
    • Web service – enables nanoWebUI™ and allows for HTTP port management.
    • Haystack service – enables Haystack API used for data tagging, exchanging tagged data over HTTP, and operation of nanoWebUI™.

    Early Access to nano EDGE ENGINE 1.12 is now live.

    This early access gives you the opportunity to explore the upcoming release ahead of its official launch, experience new features firsthand, validate them in real‑world scenarios, and contribute valuable feedback.

    Your insights will play a key role in shaping the final product, making this not just early access, but an opportunity to actively influence the evolution of nano EDGE ENGINE.

    What’s included in this release?

    The currenct Early Access version includes:

    nanoWebUI™ new features: (Trends, Schedules, Alarms Console available on webpage) and more…

    Coming soon: Touch Point 2.0.
    Space control focused on user experience & design excellence.

    Touch Point 2.0 goes beyond simple room control. It provides a unified solution for complete room comfort, including light and blind control in a single interface, eliminating the need for multiple wall-mounted devices. Designed for hotels, guesthouses, offices, open spaces, apartments, hospitals, public buildings, etc., Touch Point 2.0 ensures seamless zone management in any project.

    Available from August 2026.

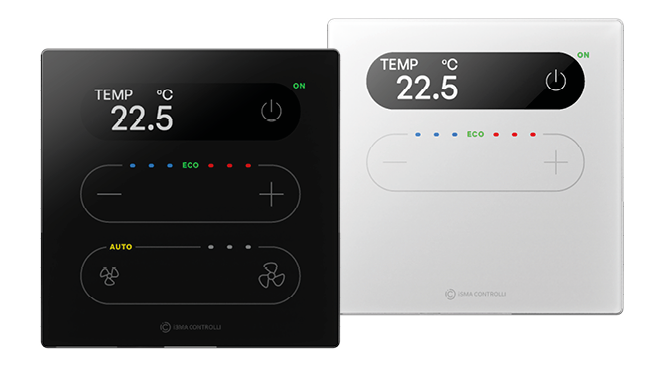

    TP and TP-VAV
    Complete room comfort control in one elegant device. Suitable for FCU, VAV, heating, and cooling systems, Touch Point 2.0 panels are available in versions with or without fan control buttons, allowing flexible adaptation to any installation. These models combine occupancy management and precise climatic control through built-in sensors, ensuring optimal performance in every environment.

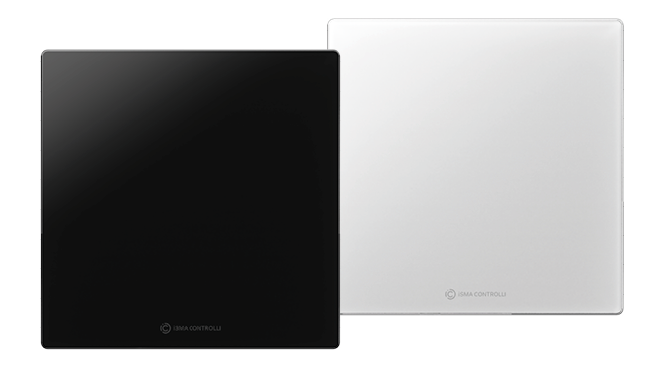

    TP-NS

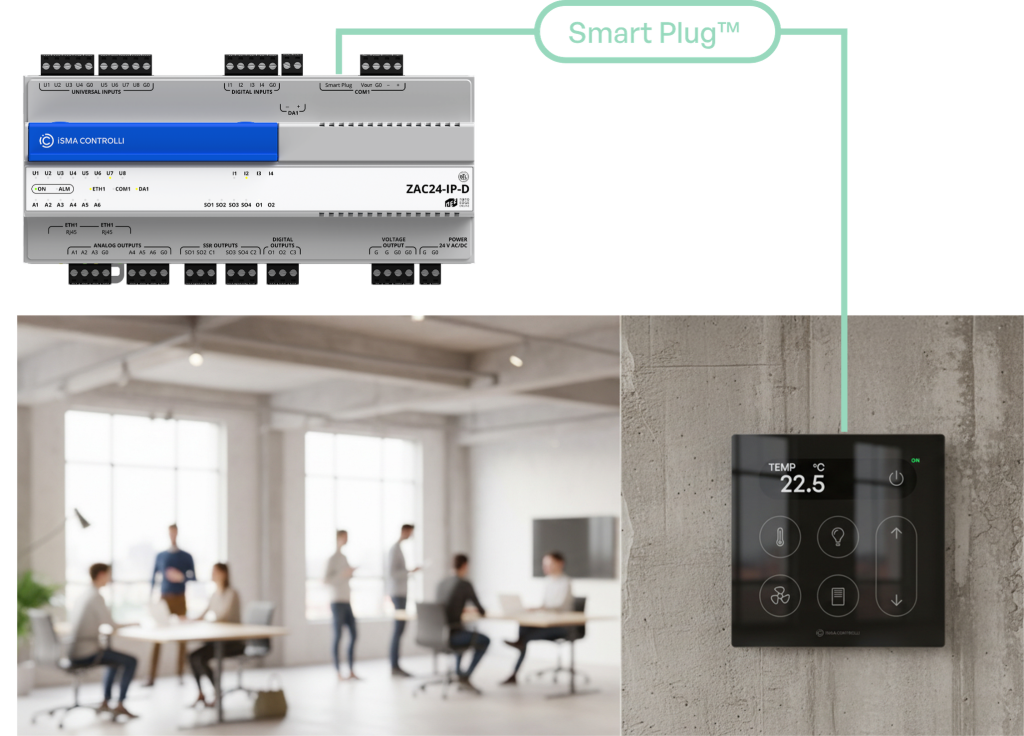

    The Touch Point 2.0 Series is complemented by Network Sensors, the ideal solution for monitoring indoor environmental conditions. Using a daisy-chain connection via Smart Plug™ interface, the system enables easy and cost-effective distributed measurement of temperature, humidity, and CO2 levels, making it especially valuable in large spaces.

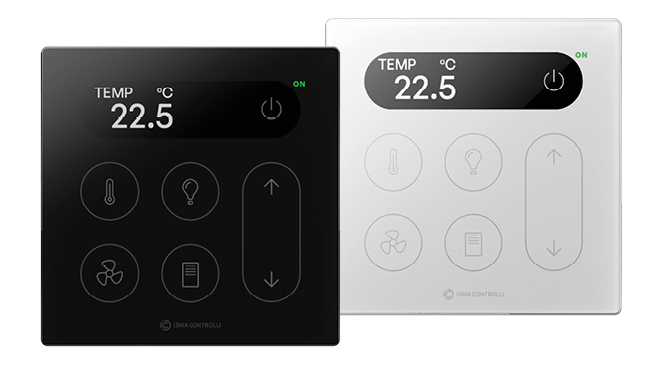

    TP-ONE
    The single panel that combines comfort control with multiple lighting and blind control options. With just ONE panel, users can manage all automation functions within a room, creating a comprehensive and intuitive control hub for modern smart environments.

    TP Lights & Blinds
    Designed for applications where dedicated control of lighting and blinds is required, Touch Point 2.0 Lights & Blinds panels provide intuitive operation through a sleek and elegant interface. They are ideal for a wide range of projects and for extending existing room automation systems with additional control points. The panels enable smooth lighting and blind control, including dimming functionality for enhanced user comfort and convenience.

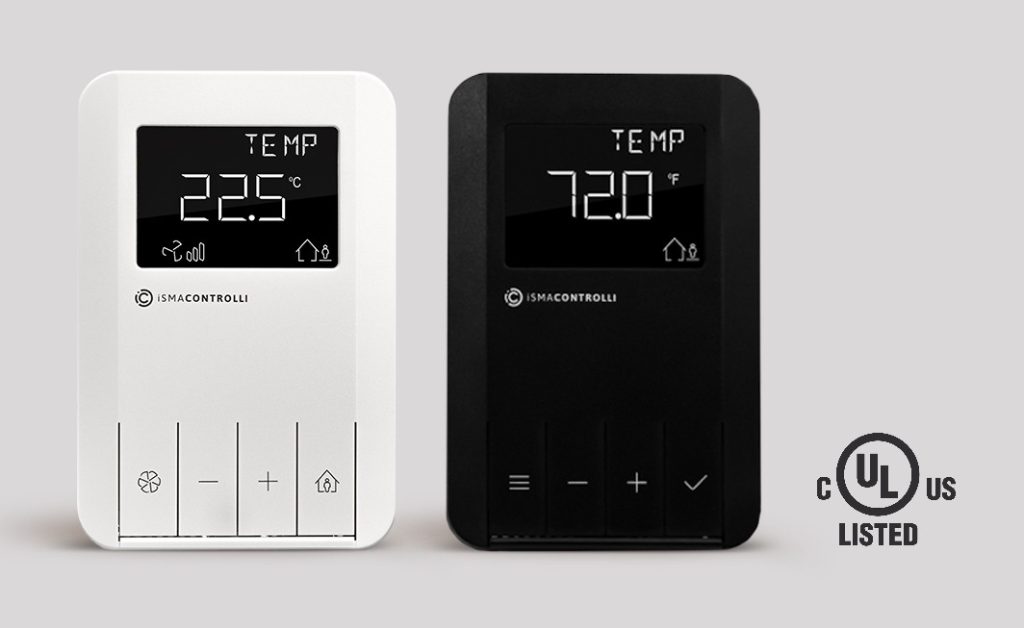

    Control Point with UL certification.

    Control Point Wall Panels are now UL Listed for U.S. and Canada according to UL 60730-1 and CAN/CSA E 60730-1, confirming that the devices comply with UL safety standards.

    If you need any more information or assistance related to the updated products, please do not hesitate to contact your local distributor.
